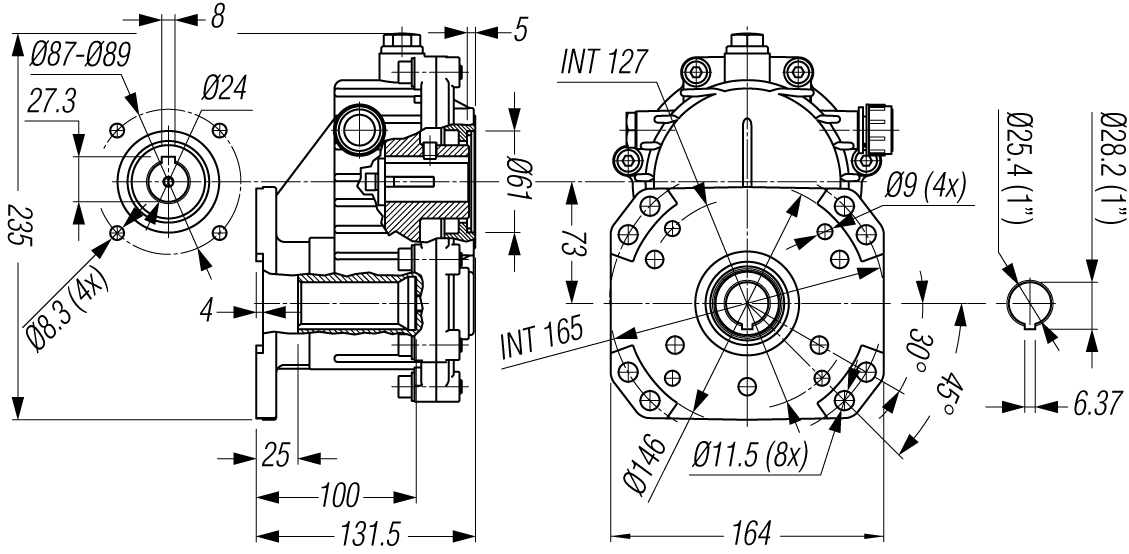

RGB 24 A
To be used with Annovi Reverberi, Bertolini, Comet, Interpump, Hawk and Udor Pumps.
Helical gears.
Reversible carter
*For P/N R00500012 e R00500013, to be used esclusively with hawk pumps. Int.89mm - 3,5"
GEAR RATIO
1:2, 19
MAX ENGINE POWER
24 HP
ENGINE FLANGE
SAE J609 A
OIL CAPACITY
'0,24 kg
8.47 lbs
OIL TYPE
SAE 80W-90
Zoom
New
Features
P/N
Engine shaft diameter
Pump shaft diameter
Fixing hole's port distance
Weight
Pz
Pump gasket repair kit
Pz#2
Engine gasket repair kit
Pz#3
Bearings repair kit
Pz#4
mm
in
mm
in
mm
in
kg
lb
R00500009
25.4
1
24
0,94
87
3.43
4.7
165.8
1
K00112009
1
K00112010
1
K00112012
1
R00500010
28.6
1"1/8
24
0,94
87
3.43
4.7
165.8
1
K00112009
1
K00112010
1
K00112012
1
R00500012
25.4
1
24
0,94
89
3.5
4.7
165.8
1
K00112067
1
K00112010
1
K00112012
1
R00500013
28.6
1"1/8
24
0,94
89
3.5
4.7
165.8
1
K00112067
1
K00112010
1
K00112012
1
